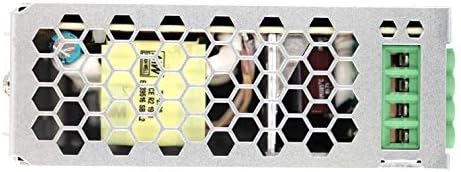

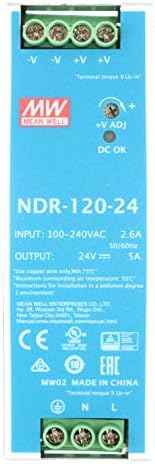

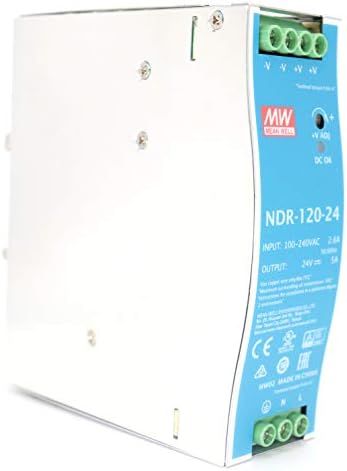

Mean Well NDR-120-24 AC/DC 24V 5A 120W Industrial DIN Rail Power Supply Single Output Provided by KAINSC Products

Price: $79.99 - $5.99
(as of Dec 09, 2025 20:02:34 UTC – Details)

NDR-120 is one economical slim 120W Din Rail Power Supply Series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails
EU RoHS: Compliant
ECCN (US): EAR99
Type: Regulated
Style: DIN Rail
Input/Output Type: AC/DC
Number of Outputs: 1
Output Type: Fixed
Output Voltage (V): 24
Output Current (A): 5
Output Power (W): 120
Minimum AC Input Voltage (V): 90
Maximum AC Input Voltage (V): 264
Minimum DC Input Voltage (V): 127
Maximum DC Input Voltage (V): 370
Minimum Isolation Voltage: 3000VAC
Line Regulation: 0.5%
Load Regulation: 1%
Maximum Input Current (A): 2.25(Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ±1
Efficiency (%): 88(Typ)
Configurable: No
Input Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: No
Ripple & Noise: 150mV(Max)
Medical: No
Minimum Operating Temperature (°C): -20
Maximum Operating Temperature (°C): 70
Product Weight (g): 600
Mounting: DIN Rail
Package Height: 125.2mm
Package Length: 113.5mm
Package Width: 40mm
Output Voltage: 24V; Rated Current & Rated Power: 5A, 120W
UL and CE Certificated; Input Voltage : 90 ~ 264VAC / 124 ~ 370 VDC
Protections: Short circuit / Overload / Over Voltage / Over Temperature
Ripple & Noise (max.): 120mVp-p; Setup, Rise Time: 1500ms, 100ms/230VAC & 3000ms, 100ms/115VAC at full load (measured at 20MHz of bandwidth by using 12” twisted pair-wire terminated with 0.1uf & 47uf parallel capacitor)
High Efficiency 88%; UL 508 (Industrial Control Equipment) approved
