50mm Red Emergency Stop Push Button Switch IP67 Waterproof 220‑250A 12‑220V for Vehicles Forklifts

Price: $31.68 - $21.89
(as of Dec 16, 2025 21:15:40 UTC – Details)

Features：
1、Function: When the machine is in a dangerous state, cut off the power supply through the emergency stop switch to stop the operation of the equipment to protect the safety of people and equipment.

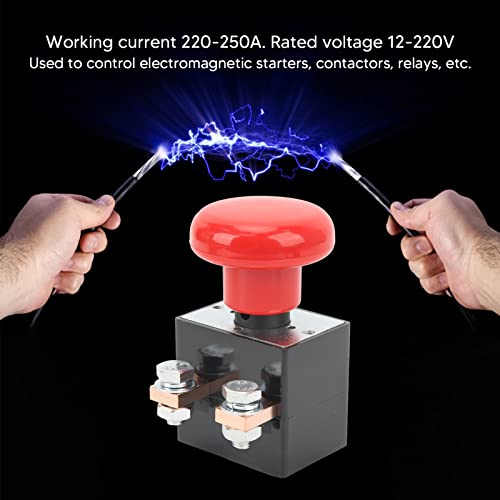

2、Important Parameters: Emergency power off switch working current 220‑250A; rated voltage 12V, 24V, 36V, 48, 60V, 72V, 84V, , .
3、Weatherproof: IP67 waterproof. It can work under the temperature condition of ‑25℃ to 55℃, and can be used outdoors for a long time.
4、Long Service Life: The mechanical life of the emergency power off switch exceeds 2,000,000 times, and the electrical life exceeds 500,000 times.
5、Wide Application: The mounting hole is 50mm, which is widely used to control automatic control circuits such as electromagnetic starters, contactors, relays, etc.

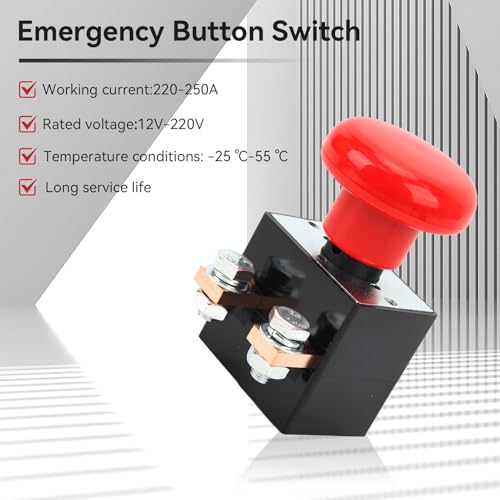

Specification:
Item Type: Emergency stop button switch
Material: ABS, copper
Color: Red
Working Current: 220-250A
Mechanical Life: ≥2,000,000 times
Electrical Life: ≥500,000 times
Protection: IP67 waterproof, outdoor use
Working Temperature: -25℃-55℃

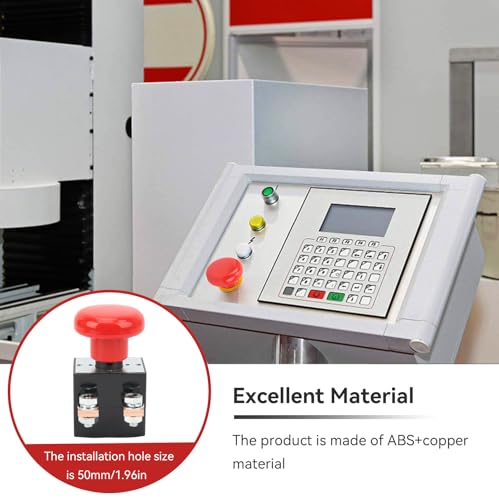

Installation Center Hole: Approx. 50mm/1.97in
Installation Location: Any location
Uses: Widely used to control automatic control circuits such as electromagnetic starters, contactors, relays, etc.
Package List
1 x Emergency Stop Button Switch
2 x Bolt
Date First Available ‏ : ‎ November 8, 2022

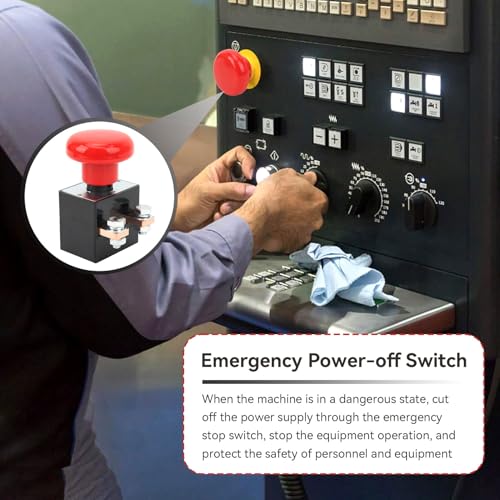

EMERGENCY BUTTON SWITCH FUNCTION: When the machine is in a dangerous state, the emergency button switch can quickly cut off the power supply and immediately stop the equipment use, thus effectively protecting personal safety and equipment integrity
IMPORTANT PARAMETERS: Emergency stop switch working current: 220-250A, adapt to different load requirements. Support a variety of voltage levels, including 12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, 220V, strong compatibility, to meet a variety of application scenarios
IP67 WATERPROOF RATING: Emergency push button station has excellent waterproof and dustproof performance, ensuring stable use even under harsh environmental conditions. Can use in a wide temperature range of -25℃ to 55℃, suitable for long-term outdoor use, not affected by seasonal changes
LONG LIFE IN USE: The mechanical life of the emergency cut-off switch is more than 2 million times, which ensures the performance under long-term frequent use. The electrical life is more than 500,000 cycles, ensuring long-lasting stable use under electrical loads
CONVENIENT INSTALLATION: Momentary stop switch has standard mounting hole diameter is 50 mm, which facilitates quick installation and integration. Can be widely used to control electromagnetic starters, contactors, relays and other automatic control circuits, applicable to industrial automation, machinery manufacturing, power systems and many other fields
